Garmin GPSMAP 9010 Chartplotter with Worldwide Basemap

Garmin GPSMAP 9010 Chartplotter with Worldwide Basemap

$3,199.00
$3,199.00
Sale Sold out
Shipping calculated at checkout.

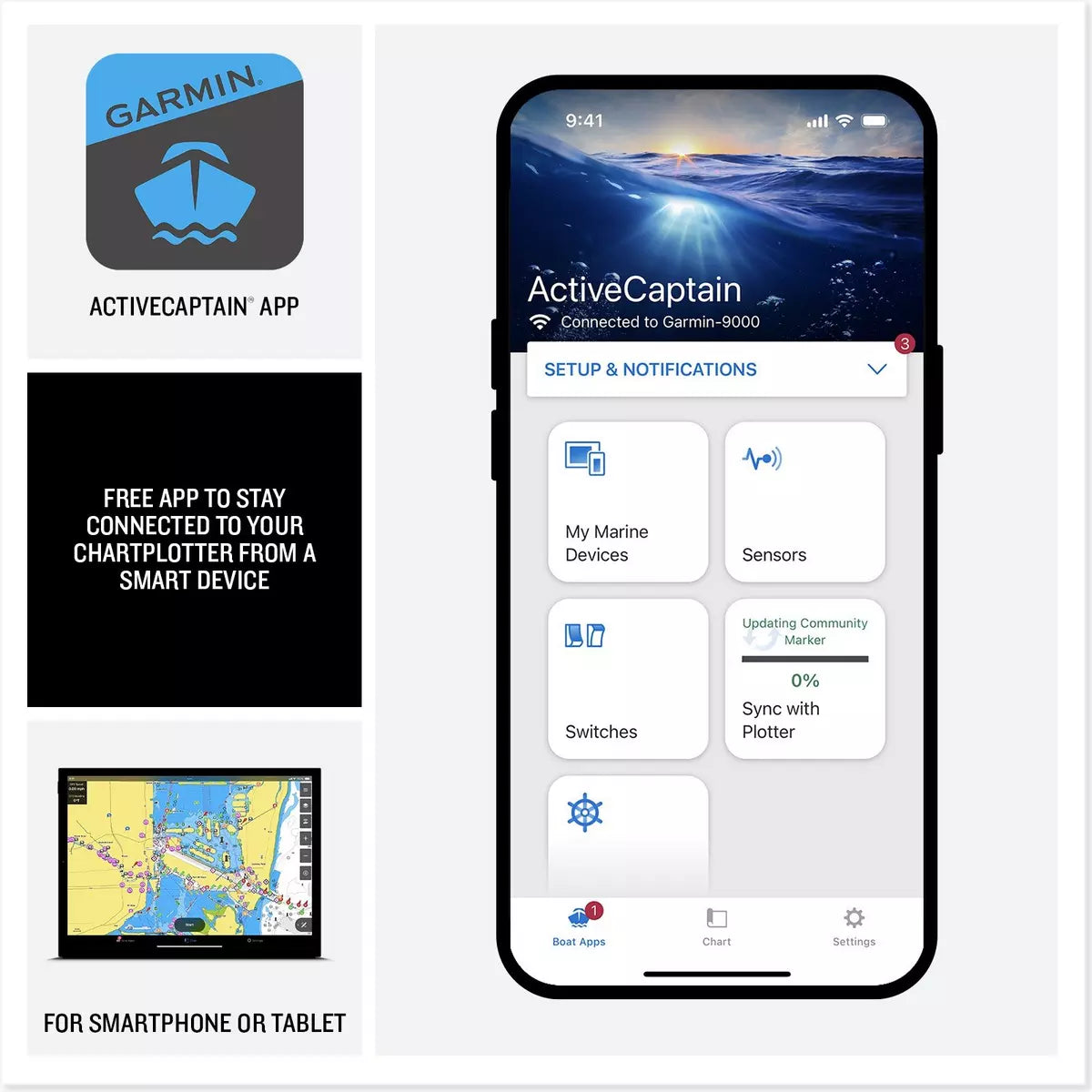

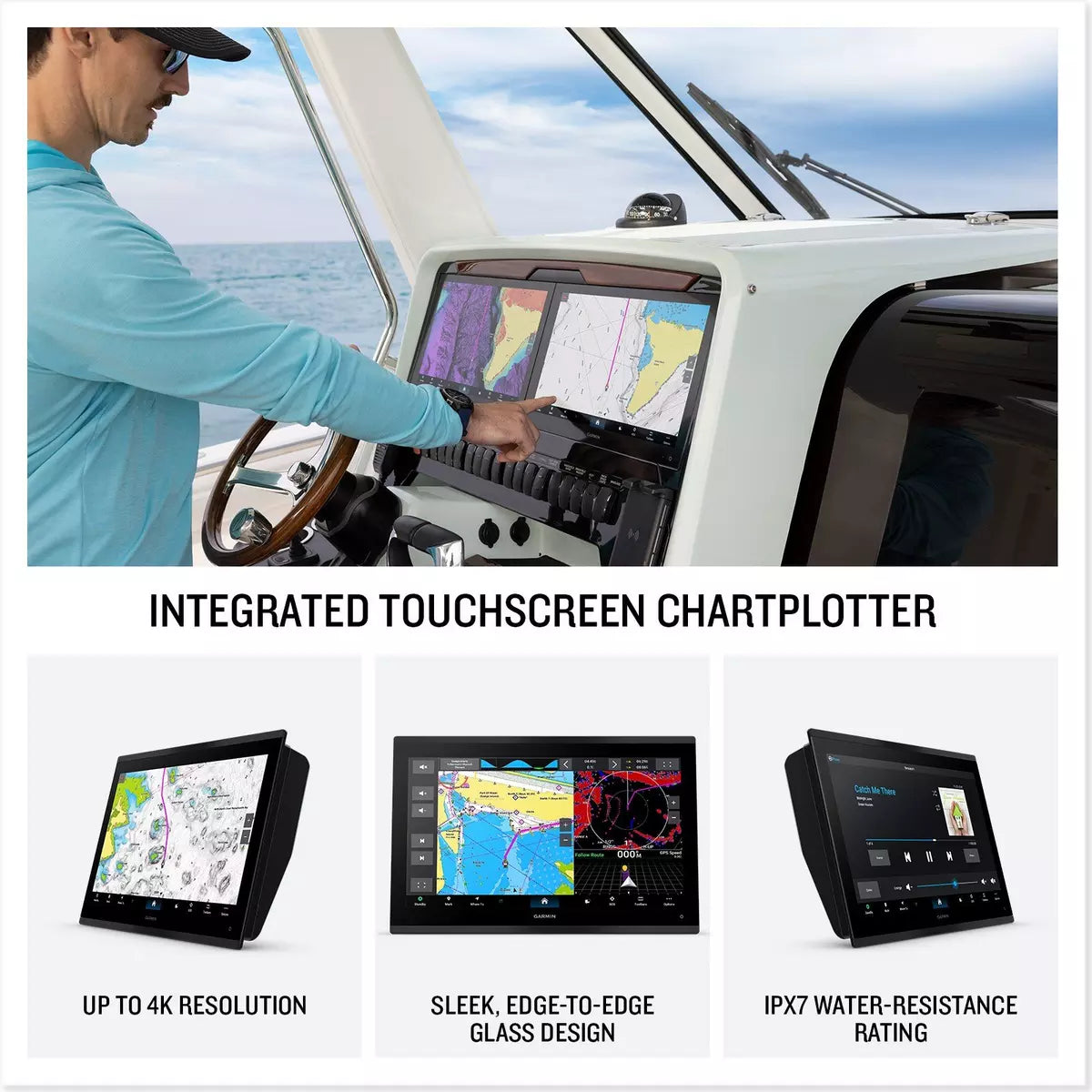

GPSMAP® 9010 is the integrated touchscreen chartplotter designed for captains who demand the best. Enjoy edge-to-edge clarity with a high-resolution display on a glass helm with premium design and materials. Plot your paradise faster than ever with processing power that’s up to 7 times faster than previous generations, and get 5GHz Wi-Fi® connectivity for ActiveCaptain® app updates. Get a connected boating experience by linking your compatible MFDs, cameras, sonars and more on the gigabit-speed Garmin BlueNet™ network. The full suite of Garmin SailAssist™ features allows you to see wind speed, direction and other critical data at a glance. When your hands are full, use spoken commands to operate the chartplotter (compatible headset or smartwatch required; not included). Navigate on the water with support for Garmin Navionics+™ charts, or upgrade to premium Garmin Navionics Vision+™ charts. Garmin Navionics+ includes a 1-year subscription for daily chart updates and support for Auto Guidance+™ technology, which helps you navigate and avoid land- and water-based obstacles based on chart data (for planning purposes only and does not replace safe navigation operations).


Includes:

  • Chartplotter
  • MicroSD™ preinstalled
  • Power cable
  • 2-meter backbone/drop cable and T-connector for the NMEA 2000® network
  • Flush mount kit

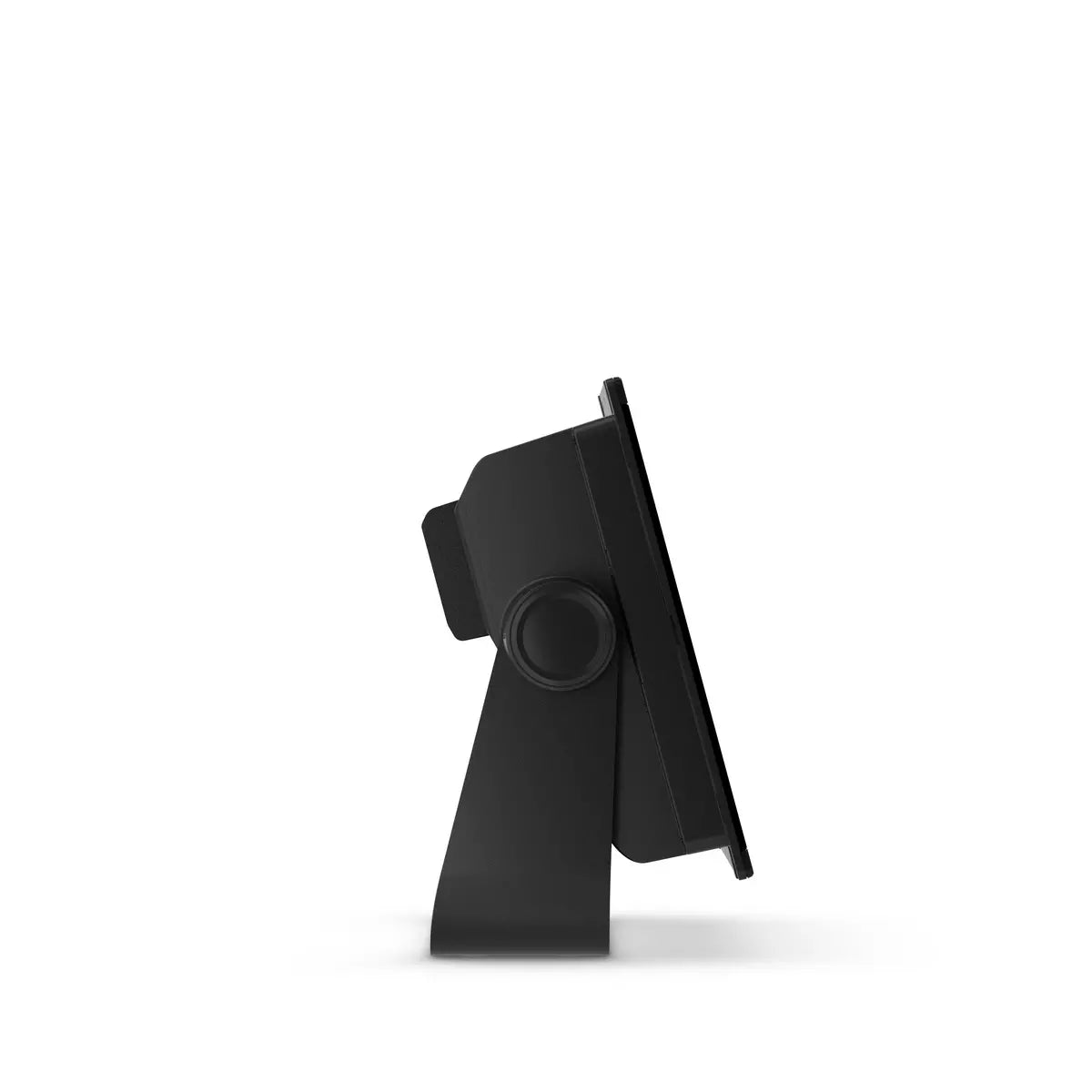

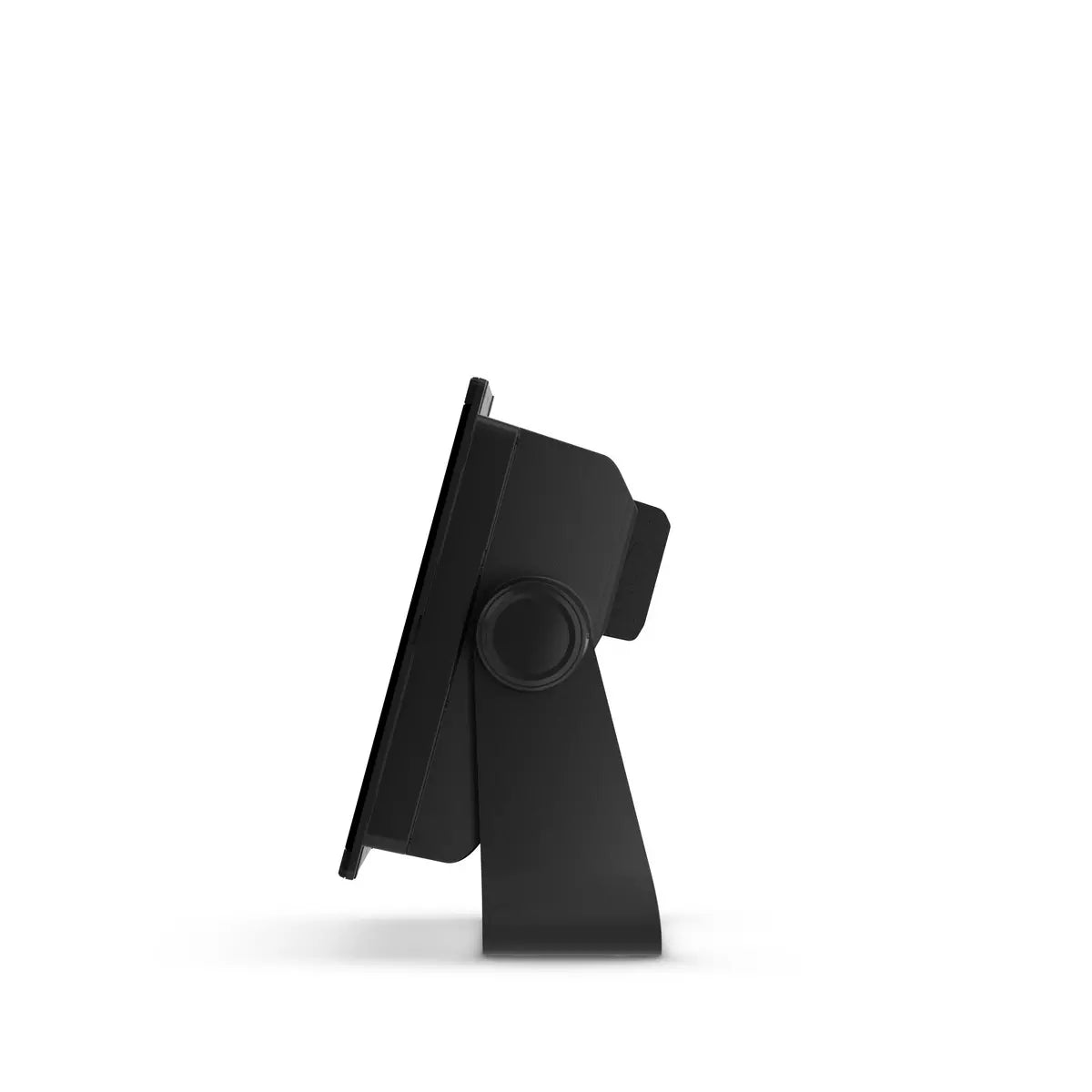

  • Bail mount
  • Protective cover and documentation
  • 10" model features full HD display
  • Glass helm with edge-to-edge design for seamless and modern look
  • Processing power is up to 7 times faster than previous generations for superior performance, plus get faster wireless ActiveCaptain® app transfer speeds with 5GHz Wi-Fi® connectivity.
  • Enjoy premium sailing features, such as sailing polars, plus see laylines, race start line guidance and more with Garmin SailAssist™ features.
  • Build extensive networks with reliable connectivity and gigabit speeds on the Garmin BlueNet™ network.
  • Enjoy high-quality entertainment with video integration capabilities with HDCP distribution.
  • Uses the NMEA 2000® and NMEA 0183® networks to connect to your compatible autopilots, sensors and more; compatible with existing marine ecosystems.
  • Take command of monitoring, control and automation systems with support for the EmpirBus™ system and other third-party solutions via OneHelm™ integrated digital switching.
  • Keep tabs on engine performance with extensive engine integration, including SAE J1939 connectivity and a wide range of support for outboard engine manufacturers.

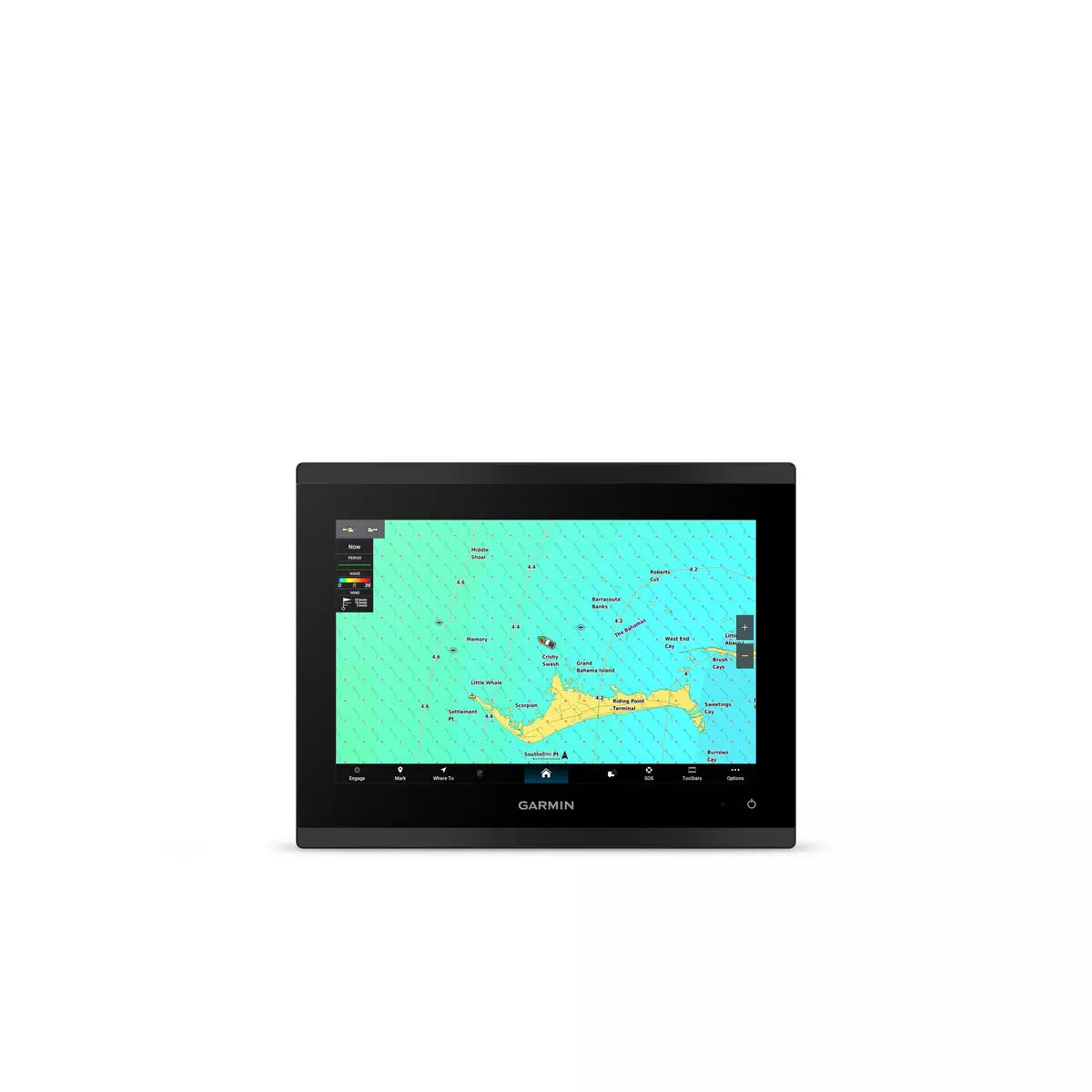

  • Support for Garmin Navionics+™ charts with Auto Guidance+™ technology (for planning purposes only and does not replace safe navigation operations) and Garmin Navionics Vision+™ charts with premium features such as high-resolution relief shading.
  • Connect your compatible Garmin devices and more with integrated BLUETOOTH® and ANT® technologies; use spoken commands to control the chartplotter with your compatible headset or Garmin smartwatch.
  • Built for harsh marine conditions with an IPX7 water-resistance rating.

Specs

  • UPC: 753759343460
  • Dimension: 10.24" x 7.87" x 3.54" (26 cm x 20 cm x 9.1 cm)
  • Weight: 5.55 lbs (2.52 kg)
  • Water Rating: IPX7
  • Touchscreen: Yes
  • Display Type: WUXGA, IPS; Edge Lit backlight
  • Display Size: 8.54" x 5.34" x 10.1" diagonal (21.7 cm x 13.6 cm x 25.6 cm diagonal)
  • DISPLAY RESOLUTION: 1920 x 1200 pixels

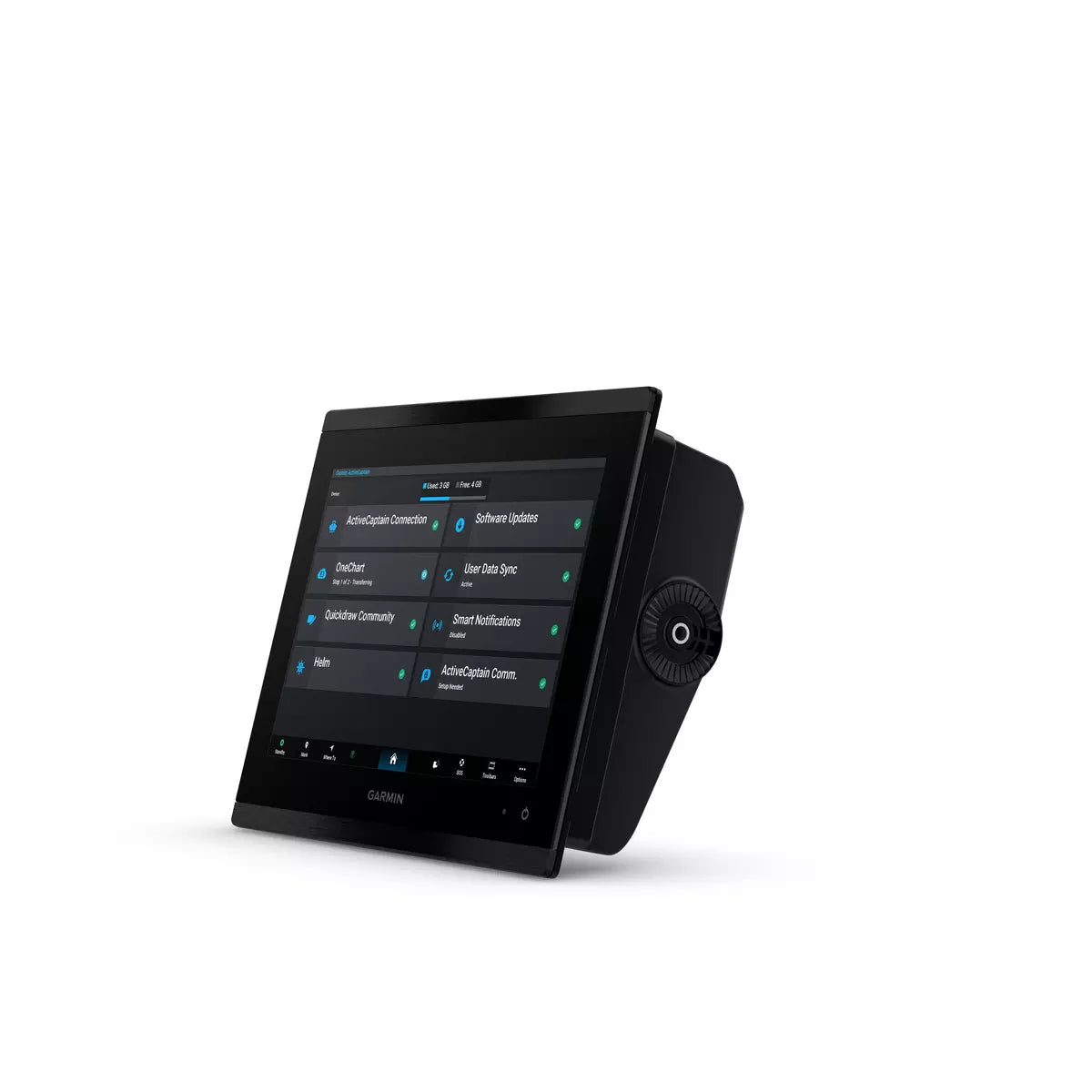

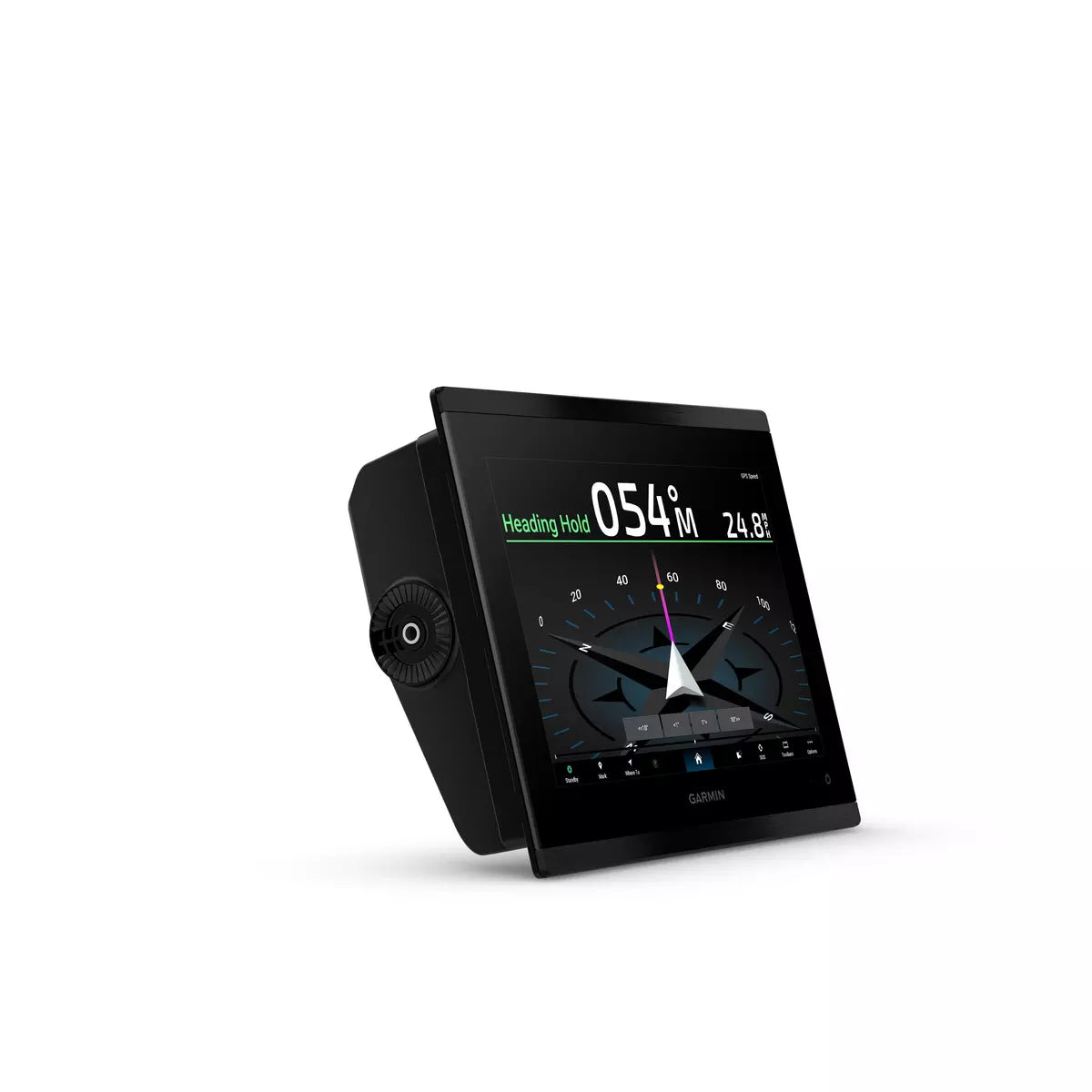

  • Mounting Options: Bail, flat or flush
  • Input: Touchscreen
  • Polarized Lens Viewability: Yes
  • Accepts Data Cards: 2 microSD™ cards (on rear of product)
  • Waypoints: 5,000
  • Track Points: 50,000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100
  • GPS sensor: Yes
  • GLONASS Sensor: Yes
  • Galileo Sensor: Yes
  • BeiDou Sensor: Yes
  • Has built-in receiver: Yes
  • Receiver: 10 Hz
  • NMEA 2000 Compatible: Yes
  • NMEA 0183 Compatible: Yes
  • Supports WAAS: Yes
  • Supports Multi-Band, Multi-Constellation GPS: Yes
  • Optional BlueChart g3 Map Support: Yes
  • Optional BlueChart g3 Vision Map Support: Yes
  • Optional LakeVü g3 Map Support: Yes
  • Optional LakeVü g3 Ultra Map Support: Yes
  • Optional Garmin Navionics+™ Map Support: Yes
  • Optional Garmin Navionics Vision+™ Map Support: Yes
  • Optional TOPO 100K Map Support: Yes
  • Optional Standard Mapping Support: Yes
  • Optional Garmin Quickdraw Contours Map Support: Yes
  • Optional Raster chart support: Yes
  • Smart Mode Compatible: Yes
  • AIS: Yes
  • DSC: Yes
  • Supports Fusion-Link™ Compatible Radios: Yes
  • GCV Black Box Sonar Support: Yes
  • ACTIVECAPTAIN® COMPATIBLE: Yes
  • Supports voice commands: Yes
  • GRID (Garmin Remote Input Device) Compatible: Yes
  • GRID 20 compatible: Yes
  • Wireless Remote Compatible: Yes
  • Sailing Features: Yes
  • Spoken Audio Alerts: Yes
  • Onehelm Support: Yes
  • Power Input: 10 to 32 VDC
  • Typical current draw at 12 Vdc: 2.43 A
  • Maximum current draw at 12 Vdc: 2.8 A
  • Maximum power usage at 10 Vdc: 29 W
  • Displays Sonar: Yes
  • Traditional Sonar (dual frequency/beam): Yes (with GCV™ black box, sold separately)
  • Supports built-in xCHIRP: Yes (with compatible black box sonar)
  • Supports built-in RapidReturn: Yes (with compatible black box sonar)
  • ClearVü: Yes (with compatible black box sonar)
  • SideVu: Yes (with compatible black box sonar)
  • Panoptix™ sonar: Yes
  • LiveScope: Yes

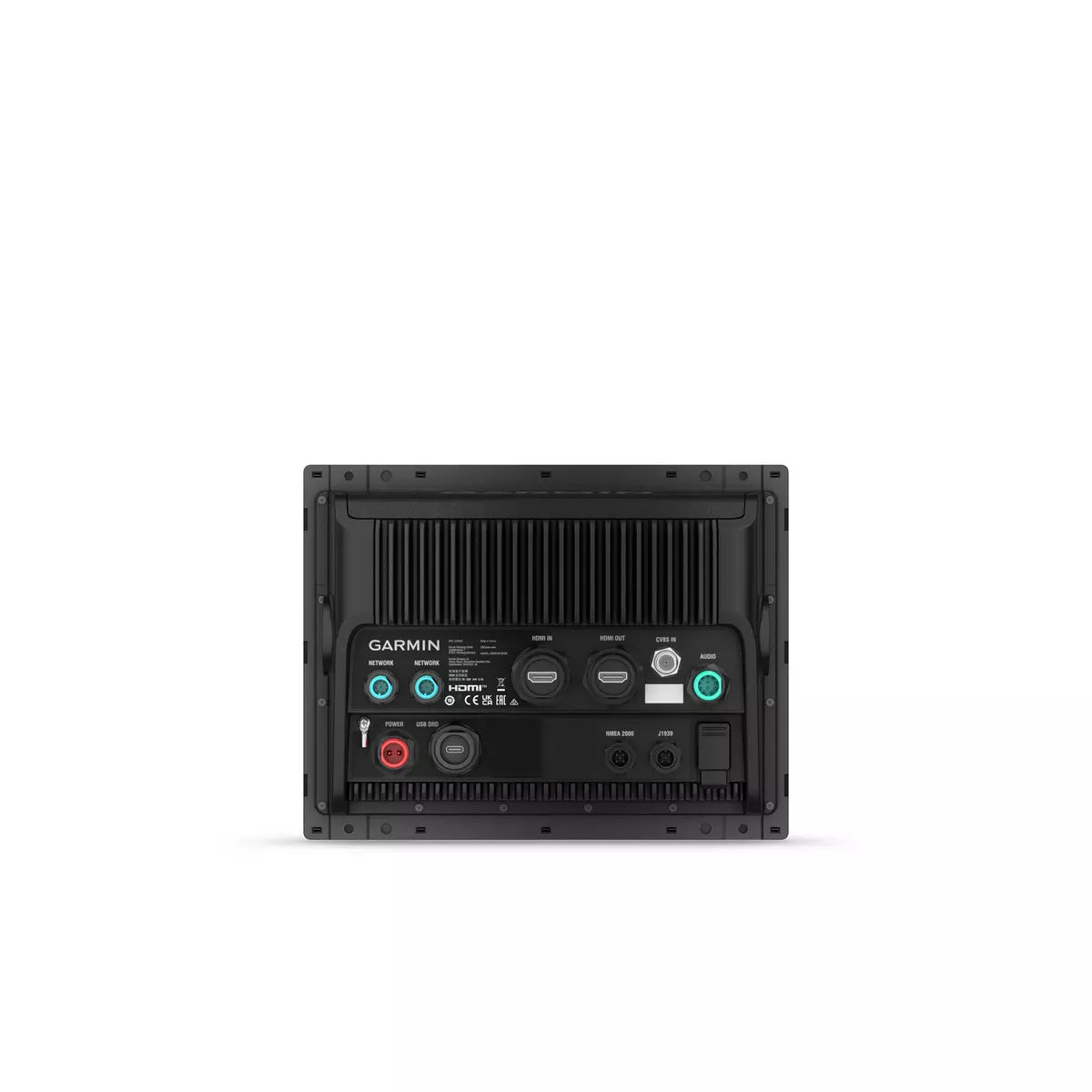

  • NMEA 2000® Ports: 1
  • NMEA 0183 Input (Rx) Ports: 1
  • NMEA 0183 Output (Tx) Ports: 1
  • Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
  • VIDEO OUTPUT PORTS: 1 HDMI
  • J1939 Ports: 1
  • Garmin BlueNet network ports 2
  • USB ports: Yes (1x USB-C)
  • BLUETOOTH® Pairing: Yes
  • ANT® (Connectivity): Yes
  • Garmin Wi-Fi network (Local Connection): Yes
  • Wi-Fi frequency bands: 2.4 GHz & 5 GHz
  • Audio output: Yes
